规格
| 下载: | 45 |

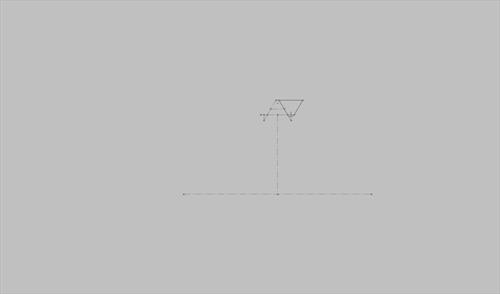

| 说明: | This is a UTF thread cutting profile for external threads. Start a sketch at the end of a thread boss and drag the block to the chanfer. Use a 30 degree chamfer and this will align perfectly. Set the top horizontal line colinear with the thread boss edge and drag the top left point to the end of the boss. Close the sketch and sweep. |
|
