供应商零件编号:
MPL3115A2

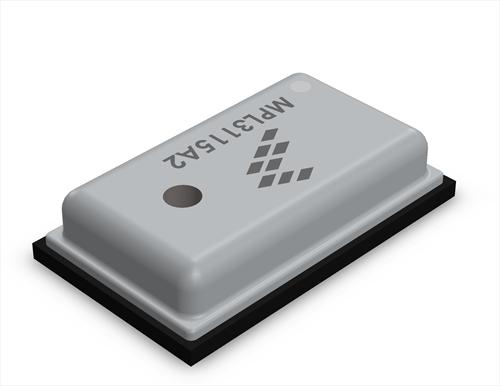

名称: MPL3115A2 说明: Absolute Xtrinsic Smart Pressure Sensor
From Freescale:
Freescale's Xtrinsic MPL3115A2 provides highly precise pressure and altitude data with variable sampling rate capability. It has very low-power consumption, smart features and requires zero data processing for mobile devices, medical and security applications.
The Xtrinsic MPL3115A2 pressure sensor smart features include digital output, two interrupts for auto-wake, minimum/maximum threshold detection and autonomous data acquisition. MCU usage can be limited since the MPL3115A2 pressure sensor can process sensor data locally, reducing communications required with the host processor.
Features
Less than 1 foot / 0.3 m resolution
Pressure range: 20 – 110 kPa
Compensated, direct reading (software is not needed):
20-bit pressure measurement (Pascals)
20-bit altitude measurement (meters)
12-bit temperature measurement
On-board intelligence
Flexible sampling rate up to 128 Hz 供应商名称: Freescale 供应商零件编号: MPL3115A2
